Szczegóły Produktu:
|
| Model: | JR-002 | funkcje: | Cięcie drutu, zdejmowanie izolacji i gięcie |
|---|---|---|---|
| Przekrój przewodu: | 2-25mm2 | Długość odizolowania: | 0,1–100 mm |
| Długość cięcia: | 1-100 000 mm | Tolerancje cięcia: | ± (0,001xL) mm |

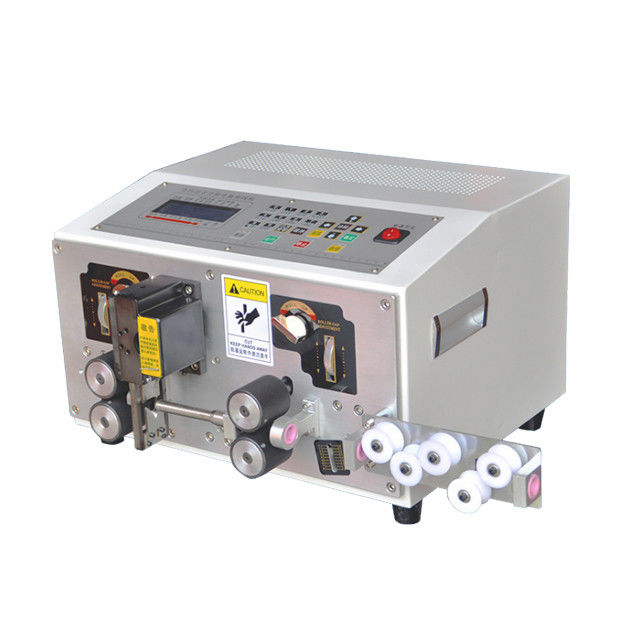

Fully Automatic Wire Cutting, Stripping & Bending Machine
This wire bending machine is able to cut, strip and bend wires and cables up to 25mm2. It can strip both ends of the wire, and bend the wire into your requested angle.
This is a high performance wire cutting stripping and bending machine for processing a wide range of wires and cables;
Applicable wire sizes: 2-25mm2
It can not only strip both ends of the wire, but also bend the wire into your requested angle;
The straightforward display provides information in the selected language about the current processing status, very visualized;
The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;
Affordable price and perfect working performance.
| Model | JR-002 |
| Features | Wire cutting stripping and bending |
| Conductor cross-section | 2-25mm2 |
| Stripping length | 0.1-100mm |
| Cutting length | 1-100,000mm |
| Cutting tolerances | ± (0.001xL)mm |
| Bending length | Can be set |
| Bend shape/angle | U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90° |
| Production rate | L=100mm, 2,000-3,000pcs/h |
| Power supply | 110/220VAC, 50/60Hz |
| Power | 600W |
| Conduit diameter | Generally ⌀ 10mm, can be customized according to wire size |
| Display screen | Chinese/English touch screen |
| Weight | 88KG |
| Dimensions | 95x88x82cm |
